Medium Studio Press Set: $45. Canadian
The Medium Size Bench Press is similar to the Small Direct Drive Press but with wider rollers and additional drive options, including both direct drive and chain drive. The press also offers the flexibility to use either wood or steel rollers, as well as a steel frame with CNC cut files for precise and efficient fabrication.
Key features of the Medium Size Bench Press:
Wider Rollers: The medium-sized press incorporates wider rollers compared to the Small Direct Drive Press. Wider rollers provide a larger contact area with the printing substrate, making them suitable for accommodating medium-sized plates and prints.
Direct Drive and Chain Drive: The press offers both direct drive and chain drive options for applying pressure to the rollers. Direct drive provides a straightforward and immediate transfer of pressure from the handle to the rollers, while chain drive incorporates a gear reduction system for mechanical advantage, making it easier to apply pressure, especially for larger bed sizes.
Wood or Steel Rollers: Printmakers have the choice to use either wood or steel rollers. Wood rollers offer a natural and artistic appeal, while steel rollers provide durability and resistance to wear, making them suitable for handling heavy substrates or frequent use.
Steel Frame with CNC Cut Files: The press features a steel frame, offering stability and strength, which is crucial for maintaining precise alignment during the printing process. The use of CNC cut files ensures the fabrication of accurately cut parts, contributing to the overall efficiency and reliability of the press assembly.
This Medium Size Bench Press caters to printmakers working with medium-sized plates and prints. The combination of drive options, wider rollers, and the choice between wood or steel rollers provides versatility for adapting the press to individual preferences and printing requirements.
With the CNC cut files, the press construction becomes streamlined, as CNC technology ensures precision and consistency in cutting the parts. The steel frame enhances the press's durability and performance, making it a reliable tool for printmakers in medium-sized studio settings.
As with any press construction, carefully follow the assembly instructions and adhere to safety guidelines when working with CNC machines and other tools. The Medium Size Bench Press with direct drive and chain drive options, wider rollers, and a steel frame with CNC cut files presents a well-rounded and adaptable solution for printmakers looking for a versatile and sturdy printing press.
Features At A Glance.......
| Frame | Bed Width | Top Roller Diameter | CNC Cut Files | Direct Drive | Chain Drive | |
|---|---|---|---|---|---|---|
| Medium Size Bench Press - Chain/Direct Drive Press |
Steel |
12" - 24" ( 30 cm- 60cm) |
4" - 6" (10 cm - 15cm) |
Yes (Wheel) | Yes | Yes |

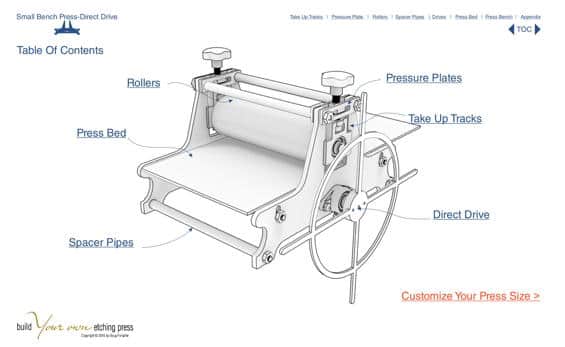

The plans are organized into sections so that you can focus on one section at a time until your press is complete. Throughout the plans there are live internet links so that you can search and order any bearings, bushings, gears etc you need.
Organizing the plans into sections can greatly facilitate the construction process, allowing you to focus on one aspect of the etching press at a time. This approach helps break down the project into manageable steps and ensures a systematic progression towards completion.
The availability of live internet links within the plans adds further convenience by providing easy access to relevant resources. With these links, you can search and order specific components such as bearings, bushings, gears, or any other necessary parts directly from online suppliers. This can save time and effort in sourcing the required materials for your etching press.
When following the links, it's advisable to review the product descriptions, specifications, and customer reviews to ensure that the chosen components are suitable for your project. Take note of any compatibility requirements or variations in sizes, materials, or specifications to ensure a proper fit and optimal performance within your press design.
Furthermore, be mindful of the reputation and reliability of the online suppliers you choose. Check their shipping policies, return policies, and customer support options to ensure a smooth purchasing experience.
The inclusion of live internet links in the plans reflects the dynamic nature of online resources and provides flexibility for obtaining the necessary components for your etching press. It enables you to conveniently access a wide range of options and choose the best-suited parts for your specific requirements.

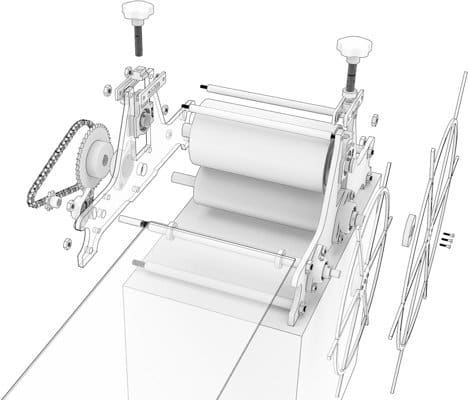

Medium Size Bench Press
Included in the plans is a custom size calculator that calculates the size of the press that fits your needs. Simply enter the largest bed size you will be printing on and the calculator will compute the size of the frame parts you will need.
This press is direct drive or chain drive, your choice.
The choice between direct drive and chain drive for an etching press refers to the mechanism used to transfer power from the handle to the roller, which applies pressure to the printing substrate. Let's explore both options:

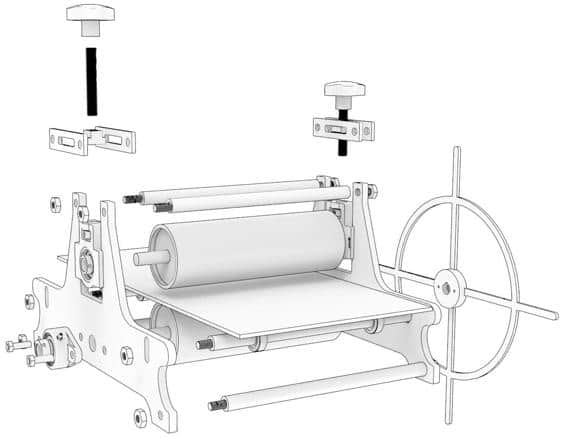

Direct Drive: In a direct drive system, the handle is directly connected to the roller without any additional intermediary components. This means that when you rotate the handle, it directly rotates the roller, applying pressure to the printing substrate. Direct drive systems are generally simple in design and operation, offering a direct and immediate response to the user's input.

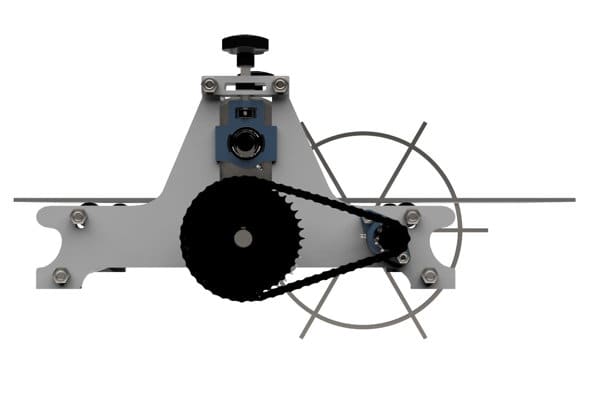

Chain Drive (4:1 ratio): A chain drive system incorporates a chain and sprocket mechanism to transfer power from the handle to the roller. The handle is connected to a smaller sprocket, and a larger sprocket is attached to the roller. The chain wraps around these sprockets, creating a gear reduction system. This 4:1 ratio means that for every four rotations of the handle, the roller will rotate once. Chain drives are often used to provide mechanical advantage, making it easier to apply pressure to the printing substrate. They can be advantageous for larger presses or when significant pressure is required.
The choice between direct drive and chain drive depends on personal preference, the specific requirements of the printing process, and the size of the press. Direct drive systems are straightforward and offer a direct connection between the handle and the roller. Chain drives provide mechanical advantage, making it easier to apply pressure, especially for larger bed sizes.
Consider factors such as the desired level of control, the size and weight of the printing substrates, the desired pressure, and the overall design of the etching press when making a decision between direct drive and chain drive for your specific needs.
Top Print Roller 150mm (6inch) diameter
Bottom Drive Roller 75mm (3 inch) diameter
In the Medium Size Bench Press plan set, there is the option to use either wood or steel for the roller construction, with a diameter of 150mm (6 inches) for the top print roller. This provides flexibility for printmakers to choose the material that best suits their preferences and requirements.
Wooden rollers can be crafted from hardwood or other suitable wood species. Wood offers a natural and aesthetic appeal, and it can be customized with various finishes to enhance its durability and performance. Wood rollers are often favored for their smooth surface and ability to provide good ink transfer during the printing process. If you would like to build your own wooden rollers there is a plan set link above.
On the other hand, steel rollers offer certain advantages as well. They tend to be more durable and resistant to wear over time, especially if the press is frequently used or handles heavy substrates. Steel rollers also provide stability and consistent pressure during the printing process, ensuring reliable and uniform ink application.
When deciding between wood or steel rollers for the Medium Size Bench Press, consider factors such as your specific printing needs, desired aesthetics, durability requirements, and the materials you have access to. It's important to ensure that the chosen rollers are compatible with the design of the press and properly integrated into the overall construction.
Regardless of the material chosen, maintaining the rollers by cleaning them regularly and ensuring proper alignment and attachment to the press will help maintain their performance and longevity.

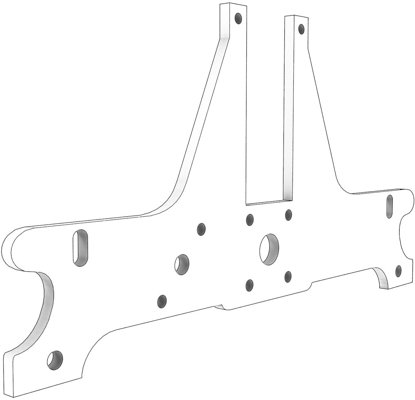

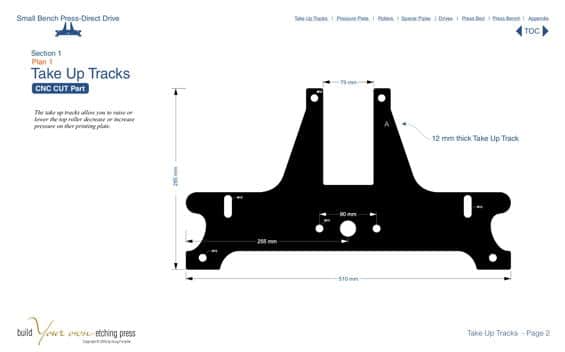

There are CNC cut files included with the plans. Individual cut files for each of the press frame parts. File formats include Vector 3D Stp, DXF & PDF. All files are metric Millimeters.
